| SB 10 | Semi- scale M 1 : 6,1 | ||||||||||||||||
| Model with ready parts | Ref. N°. | rk470 | 587,00 | ||||||||||||||
| Price with VAT | |||||||||||||||||

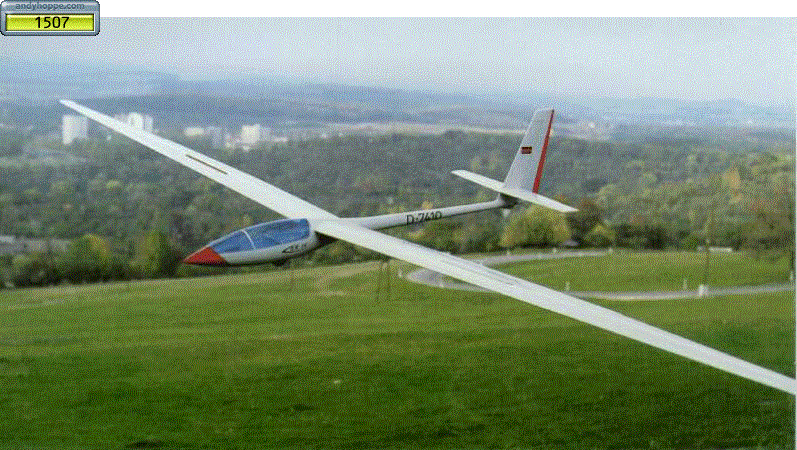

| The ROKE SB-10, a for many years always again bought model,
characterized by the stark contrasts between theory and practice. The results of computer calculations say, that this model will not fly very well. |
|||||||||||||||||
| However, practice has shown that the SB 10 provides very excellent performance in a very wide speed range | |||||||||||||||||
| The specialty of the SB 10 is, to climb enormous quickly at normal thermals, to fly the next moment at high speed to the next upwind, without losing much altitude. | |||||||||||||||||
| But even if you like to enjoy themselves close to mountain slopes with brisk to wild flying style, the SB 10 is a willing partner, does not take easily offended control errors. | |||||||||||||||||
| The landing approach is very simple due to the generously dimensioned double-decker TECK spoilers and forgiving flight characteristics. | |||||||||||||||||
| Content of models and description of the finished components: | |||||||||||||||||
| GRP fuselage, white gelcoated, reinforced several
times. The bowden-cables for rudder and elevator are carefully installed and
smoothly. The positions of wing- and elevator-mounting-holes, towhook and wheel axle are clearly marked. |
|||||||||||||||||
| Canopy-glass as desired in clear, light-blue or smoked color. | |||||||||||||||||
| Wings made of styrofoam, with obeche planking, ready to cover with Oracover. Installed with sufficient glass inserts, double-decker 37cm-TECK spoilers, cut out ailerons and planked. Incorporated reinforcements on the servo shafts, built-in wing-steels, twisted servo wires. | |||||||||||||||||
| Pendulum tailplane, balsa-sheeted, ready-joiner, ready to cover with Oracover. | |||||||||||||||||
| Almost
ready to cover balsa-sheeted rudder (After installation of the rudder to the fuselage, the nose of the horn balance still needs to be slightly adjusted. |
|||||||||||||||||
| Set of accessories: Wing-joiner, brass tube, reinforced pendulum lever for the elevator, 2 rudder hinges, 3 horns for ailerons and rudder, cabin locking, detailed illustrated instructions. |
|||||||||||||||||
| Technical data: | Spare parts: | Ref. N°. | Price with VAT | ||||||||||||||
| Wingspan | 4740 mm | GRP- fuselage, white, with applied bowden-cables for rudder and elevator | rk4701 | 165,90 | |||||||||||||
| Length over all | 1740 mm | ||||||||||||||||
| Height over all | 400 mm | Canopy glass light blue | rk4702b | 19,95 | |||||||||||||
| Wing profile on the fuselage | Ritz 2, modifiziert | Canopy glass clear | rk4702f | 19,95 | |||||||||||||
| Wing deepth at the fuselage | 192 mm | Canopy glass light smoke-coloured | rk4702r | 19,95 | |||||||||||||
| Fuselage width at wing connection | 94 mm | Pair of wings, ready to cover, with ailerons and double-decker-airbrakes | rk4703 | 388,00 | |||||||||||||
| Wing area | 71 dm2 | ||||||||||||||||
| Wing profiles | Ritz 2, modifiziert | Pendulum-elevator | rk4704 | 48,50 | |||||||||||||
| Elevator- span | 720 mm | Rudder | rk4705 | 22,60 | |||||||||||||
| Elevator area | 6,5 dm2 | Wing-joiner fόr the fuselage | rk4706 | 28,95 | |||||||||||||
| Stabilizer profile | NACA 0009 | ||||||||||||||||
| Weight Standard-model approx. | 3800 bis 4000 gr | ||||||||||||||||
| G-load max. approx. | 8 bis 9 G | ||||||||||||||||
| Optional accessories : | Ref. N°. | Price with VAT | |||||||||||||||
| GRP-canopy-frame | rk47012 | 25,50 | |||||||||||||||
| GRP-wheel cover for wheels up to 80 mm | rk1019 | 6,20 | |||||||||||||||
| Retractable landing gear with wheel cover for wheels with 72 mm Ψ | gr1185 | 78,90 | |||||||||||||||
| Standard wheel Ψ 72 mm with nylon rim | br72 | 3,00 | |||||||||||||||
| High load-quality wheel 75 mm Ψ | mx733091 | 5,70 | |||||||||||||||
| Tow release for installation in fuselage nose | kd1186 | 13,95 | |||||||||||||||
| Plastic towhook (2 pieces required) | gr627 | 3,00 | |||||||||||||||
| Pair D flags, small, 60x35 mm, for adhering to the fin | rk1220 | 2,30 | |||||||||||||||
| 1 pair of wing-protection-bags, made of 3-ply bubble wrap | rk47091 | 53,00 | |||||||||||||||
| 1 pair of elevator-protection-bags, made of 3-ply bubble wrap | rk47092 | 15,80 | |||||||||||||||
| Services to the model | |||||||||||||||||
| Operation | Ref. N°. | Price with VAT | |||||||||||||||
| Installation and adjustment of the wing joiner in the fuselage | rk470s1 | 96,60 | |||||||||||||||
| Absolute gap-free adaptation of the wings to the fuselage contour | rk470s11 | 28,95 | |||||||||||||||
| Mounting of the canopy-frame and canopy-lock on the fuselage. | rk470s14 | 51,20 | |||||||||||||||
| Installation of the rudder and elevator and the associated linkages. | rk470s151 | 178,00 | |||||||||||||||
| Spraying of the canopy frame with a dark
color, glueing of the canopy to the canopy-frame |
rk470s32 | 133,00 | |||||||||||||||
| Further service work, which can lead up to the flight-finished model, on detailed request! | |||||||||||||||||
| roke - modelle, Roland Kern, Rosenstrasse 2, D - 72827 Wannweil, Tel.: 0049 7121 - 57 336, FAX: 0049 7121 - 54 439 | E-mail to ROKEMODELL | ||||||||||||||||
| More informations about this and other ROKE- models you can see in our Video ROKE - Modelle. We present the models in as-delivered condition and in the flight. The video has a running time of over 2 hours and is accompanied from wonderful music in HiFi hiFi-Stereo. | |||||||||||||||||
