Product information

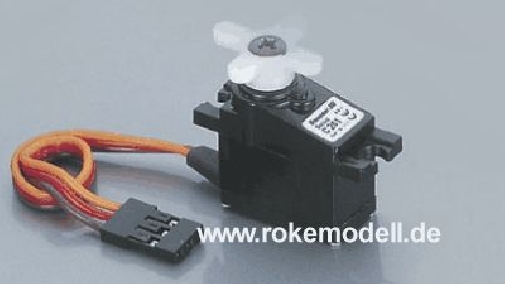

Micro Power Servos Micro Power servos with small dimensions, in the weight class of 8-10 gr. The Micro Power servos have been conceived for universal use in Slow Flyers, HLG Gliders, electric helicopters, miniature flying models, and small boats for which high positioning torque, and smallest possible dimensions are required. A Direct Drive potentiometer, the latest Micro Servo technology, and a proven electric motor, are the distinctive features of this Micro Power concept.

Specification

Operating voltage 4,8 ... 6 V
No-load current drain approx. 5 mA
Max. current drain 0,45 A
Env./approx. 14 Ncm (1400 cmg)
Rotary range 2x45°
Transit time 0,14 s/40°
Weight 8 g
Dimensions (L x W x H) approx. 22 x 11 x 21 mm
