Product information

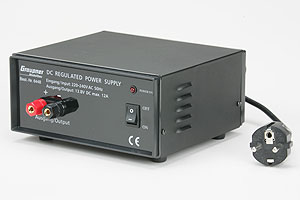

The impressive features of this low-priced electronic switch-mode mains PSU are its low weight and small size. The latest switch-mode technology makes it possible to design such PSUs without the usual large, heavy transformer. Even so, this mains unit can deliver up to 12 A at an output voltage of around 13.8 V, making it the ideal power source for battery chargers up to max. 150 W.

Specification

Input voltage : 230 V + 10% AC 50 Hz
Output voltage approx. 13.8 V
Max. continuous current : 12 A
Dimensions (L x W x H) approx. 170 x 170 x 85 mm
Weight approx. 1100 g
